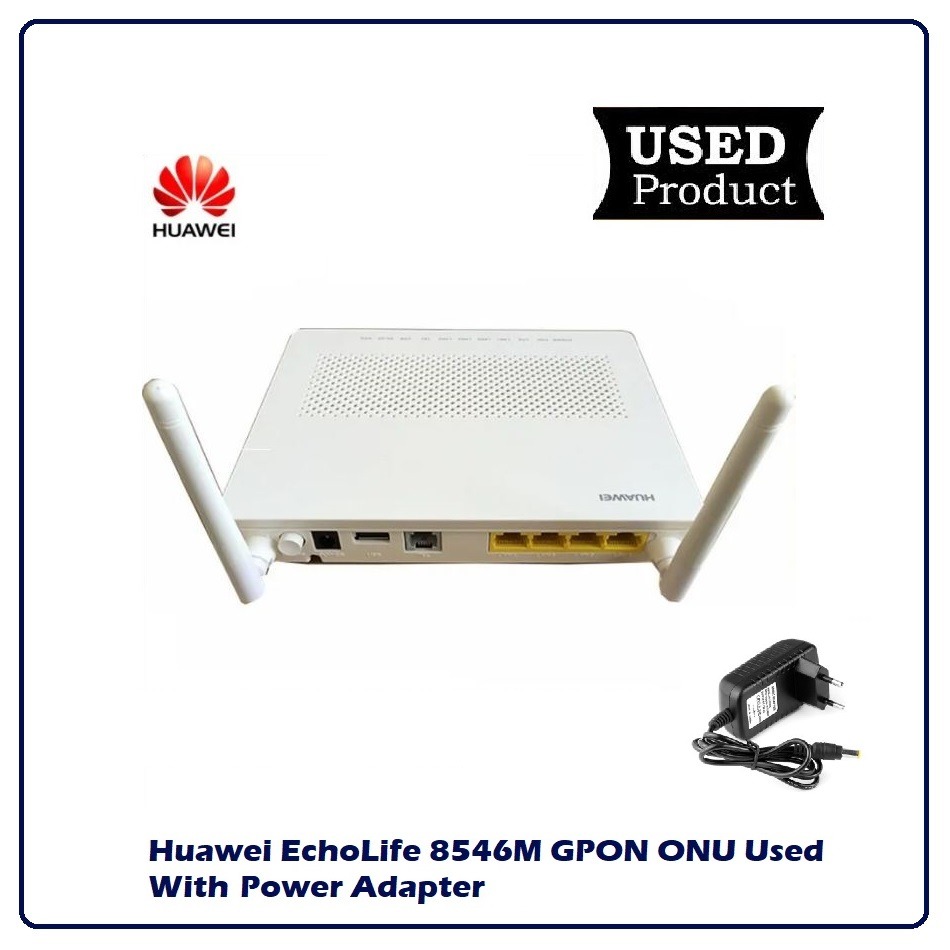

Huawei HG8546M XPON FIBER OPTIC WIFI ROUTER
The Huawei HG8546M, Optical Network Terminal (ONT), is a high-end residential gateway in the Huawei FTTH solution. By using XPON SC/UPC technology, access to ultra-wideband Internet is provided to home and SOHO users. HG8546M has 1 POTS phone port, 1 GE Gigabit port + 3 FE fast Ethernet ports, and 1 USB port. It enables wireless WiFi transmission in the 2.4 GHz band, according to IEEE 802.11 b/g/n standards. Maximum wireless transmission capacity is 300 Mbps, the device has two external antennas with 2 dBi gain each. Therefore, H8546M provides an ideal terminal solution and support for future FTTH implementation. The offered product is perfect for homes and small businesses, providing reliable service. Included with the device is a DC 12V 1A power supply with a European plug (no adapters!).
Key features of Huawei EchoLife HG8546M Gpon Onu
- XPON ONT terminal
- XPON SC/UPC port
- 1 Gigabit Ethernet port
- 3 Fast Ethernet ports
- 1 USB port
- 1 phone port (POTS)
- possibility of WiFi network transmission in 2.4 GHz band
- maximum wireless transmission speed 300Mbps
- two external antennas with 2 dBi gain each
Technical specifications of Huawei Echolife HG8546M Gpon onu WiFi subscriber terminal
| GPON port |
1 SC/UPC XPON port Class B+
Sensitive reception: -27 dBm
Wavelength: US 1310nm, DS 1490nm
WBF
Flexible mapping between the GEM and TCONT ports
G.984.3
Double-sided FEC
SR-DBA and NSR-DBA |
| Ethernet port |
1 port 10/100/1000BASE-T (RJ45);
3 ports 10/100BASE-T (RJ45)
Transparent VLAN transmission |
| POTS port |
Maximum REN: 4
G.711A/u, G.729a/b and G.722
T.30 / T.38 / G.711 fax
DTMF
Emergency calls (via SIP protocol) |
| USB port |
1 USB 2.0 port
Possibility to create a network drive based on FTP |
| WLAN |
IEEE 802.11 b/g/n
2×2 MIMO
Antennas with 2 dBi gain
WMM
Many SSIDs
WPS |
| Connection type |
SC/UPC |
| Dimensions |
176x138x28 mm (without antenna) |
| Weight |
< 500 g |
| Permissible operating temperature |
0 to 40 degrees C |
| Permissible air humidity |
5%-95% RH non-condensing |
| Power input |
100 – 240 V AC, 50-60 Hz |
| System power supply |
11 – 14 V DC, 1 A |
| Static power consumption |
4.5 W |
| Maximum power consumption |
12 W |
| LEDs |
POWER / PON / FATE / LAN / TEL / USB / WLAN / WPS |
| Intelligent connection |
Intelligent WIFI coverage (support V300R015C10)
Adaptive SIP / H.248
Any port Any service
Parental control (support V300R015C10) |
| Intelligent operation and maintenance |
OMCI
Active passive ONT detection and isolation
Call up simulation / internal test, external
PPPoE / DHCP simulation test
WLAN simulation |
| Multicast |
IGMP v2 / v3 snooping
IGMP v2 proxy server
IGMP v3 proxy server (support V300R015C10)
MLD v1 / v2 snooping
WIFI provides multicast services |
| QoS |
Ethernet port speed limit
Priority 802.1
SP/YYYY / SP + YYYYY
Limit on packet transmission speed |
| O & M |
OMCI / Web UI / TR069
Double backup and restore software |
| Security |
SPI firewall
Anti-DoS attack
MAC / IP / URL filtering |
